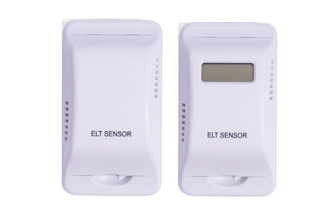

NH3-CD300(LG) is three wired chemical type Ammonia gas sensing Transmitter. Its multi-dimensional compensation algorithms have the chemical sensor measurement precisely through full temperature and concentration range.

∙ Application : Industries and life safety

∙ Measurement Range : 0~100ppm

∙ Accuracy : ±3% F.S.

∙ Input Power : 3wired 24VDC ± 20%

∙ Output : 4~20mA(default), 0~20mA,0~10V,2~10V with switch /

              (Option: 0~20mA,0~5V,1~5V : selectable on purchase)

NH3-CD300 DATASHEET DS_NH3-CD300(LG)_ver1.01_Eng.pdf첨부파일


ELT Sensor is a company located in Korea and leads gas sensor technology with 20 years of experience and top technology in NDIR gas sensor field.

The module is an electrochemical "ammonia" gas measurement module.
It is shipped after individual calibration and calibration before the product is shipped to ensure high accuracy and stability.

It provides high quality by shipping after individual correction and correction work before product release.

Ammonia measurement sensors can be used in various environments where harmful gases are generated. Typically, they can be installed in an enclosed environment such as industrial sites, factories, petrochemicals, shipyards, livestock houses, and power plants to maintain a safe working environment.

By supporting the Analyst A-out output (4-20 mA (default), 0-20 mA, 0-10V, 2-10V), it can be easily applied and used in industrial sites by applying it to PLC and PC.
