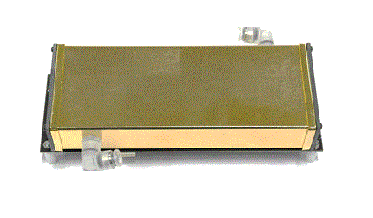

NF3(Nitrogen trifluroride) Sensor Module

∙ Measuring Range : 0~500, 0~1000ppm, 0~5,000ppm, 0~10,000ppm - Order selection

∙ Accuracy : ±3% F.S. (0~ 40% range), ±5% F.S. (41~ 100% range)

∙ Resolution : 1ppm

∙ LDL (Low Detection Limit) : 1ppm

∙ Input Power : DC 12V

∙ Output : UART or I2C or Aout(4-20mA or 0-10V) or RS-485Modbus - Select one

∙ Size:  185mm x 75mm x 50mm (W, D, H)
