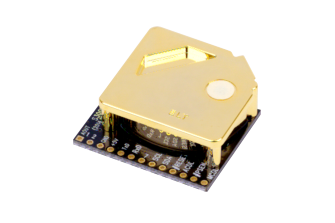

CxHy-S3 Series

CxHy-S3 series are single-channel NDIR sensor modules, measuring Methane, Ethylene, Propane, and Butane gas.

∙ Application : Industries and life safety

∙ Measurement Range : 0~100%LEL(CH4 0~50,000/C2H4 27,000/C3H8 21,000/C4H10 18,000ppm)

∙ Accuracy : ±3% F.S

∙ Input Power : 3.3V(3.2~3.6V) / 5V(±5%)

∙ Output : UART, I2C, Analog, PWM

CH4-S3 DATASHEET DS_CH4-S3_ver 1.21_Eng.pdf첨부파일 C2H4-S3 DATASHEET DS_C2H4-S3_ver 1.01_Eng.pdf첨부파일 C3H8-S3 DATASHEET DS_C3H8-S3_ver 1.21_Eng.pdf첨부파일 C4H10-S3 DATASHEET DS_C4H10-S3_ver 1.21_Eng.pdf첨부파일 CH4-S3-3V DATASHEET DS_CH4-S3-3V_ver 1.31_Eng.pdf첨부파일 C2H4-S3-3V DATASHEET DS_C2H4-S3-3V_ver 1.21_Eng.pdf첨부파일 C3H8-S3-3V DATASHEET DS_C3H8-S3-3V_ver 1.21_Eng.pdf첨부파일 C4H10-S3-3V DATASHEET DS_C4H10-S3-3V_ver 1.21_Eng.pdf첨부파일
