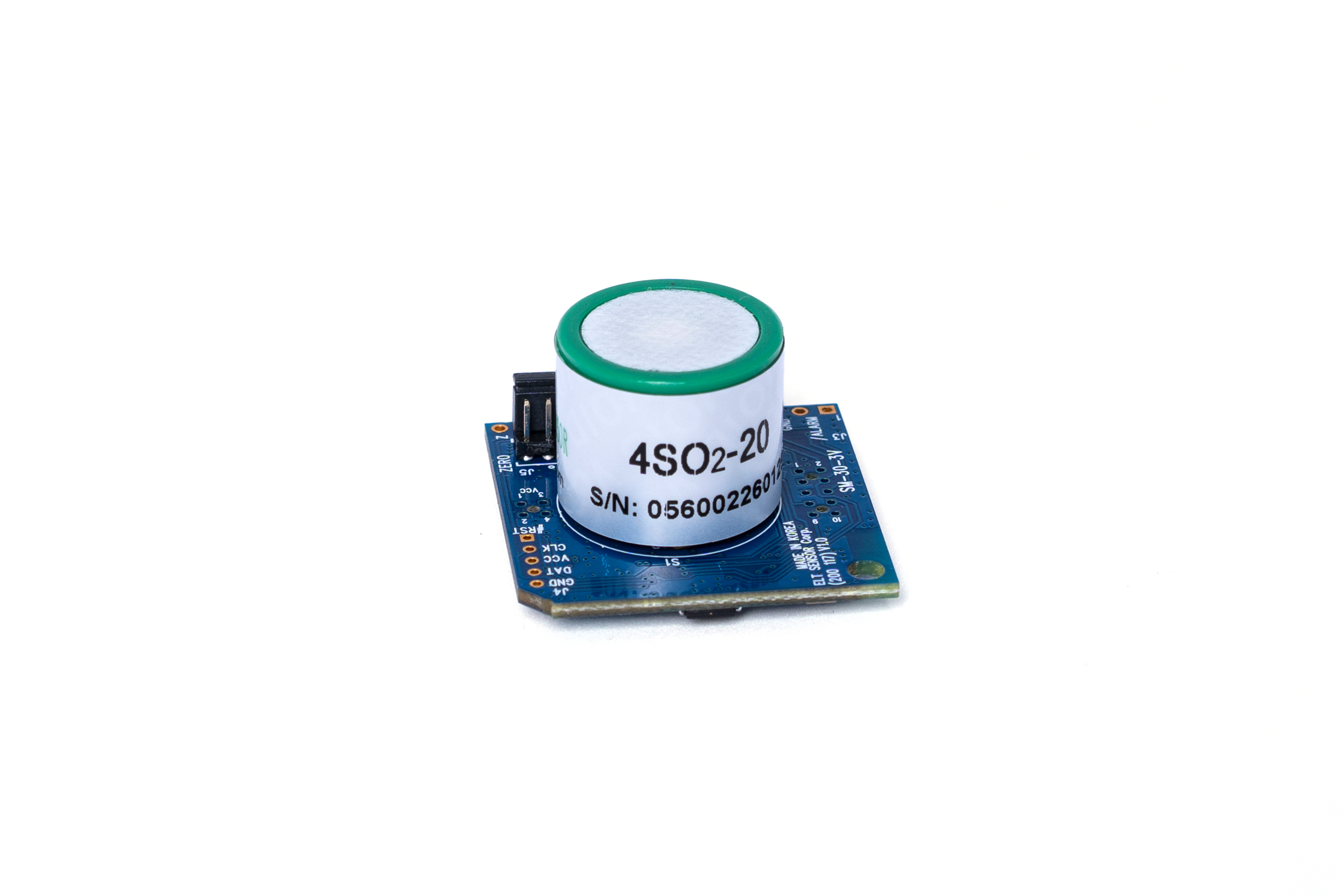

SO2-SM30
SO2-SM30 series are Electro-chemical type Sulfur dioxide gas sensing modules.
∙ Application : Wineries, Wastewaters, Refineries, Textiles, Heat treatment, Process manufacturing,
Refrigeration systems, and other sulfide dioxide generating facilities.
∙ Measurement Range : 0~100ppm (Maximum Overlaod: 300ppm)
∙ Accuracy : < ± 3 % F.S.
∙ Input Power : 3.3VDC (3.2V ~ 3.5V) c.f. Battery model (2.6~3.0V) is available.
∙ Output : UART, I2C, ALARM, PWM
개요
ELT Sensor is a company located in Korea and leads gas sensor technology with 20 years of experience and top technology in NDIR gas sensor field.
The module is an electrochemical "sulfur dioxide" gas measurement module.
It is shipped after individual calibration and calibration before the product is shipped to ensure high accuracy and stability.
It provides high quality by shipping after individual correction and correction work before product release.
Sulfur dioxide measurement sensors can be used in various environments where harmful gases are generated. Typically, it can be installed in sealed environments such as industrial sites, factories, petrochemical fields, shipyards, livestock farms, and power plants to maintain a safe working environment. In particular, it is widely used in power plants, smelters, automobile exhaust gases, roads, and transportation-related facilities that use coal or oil.
